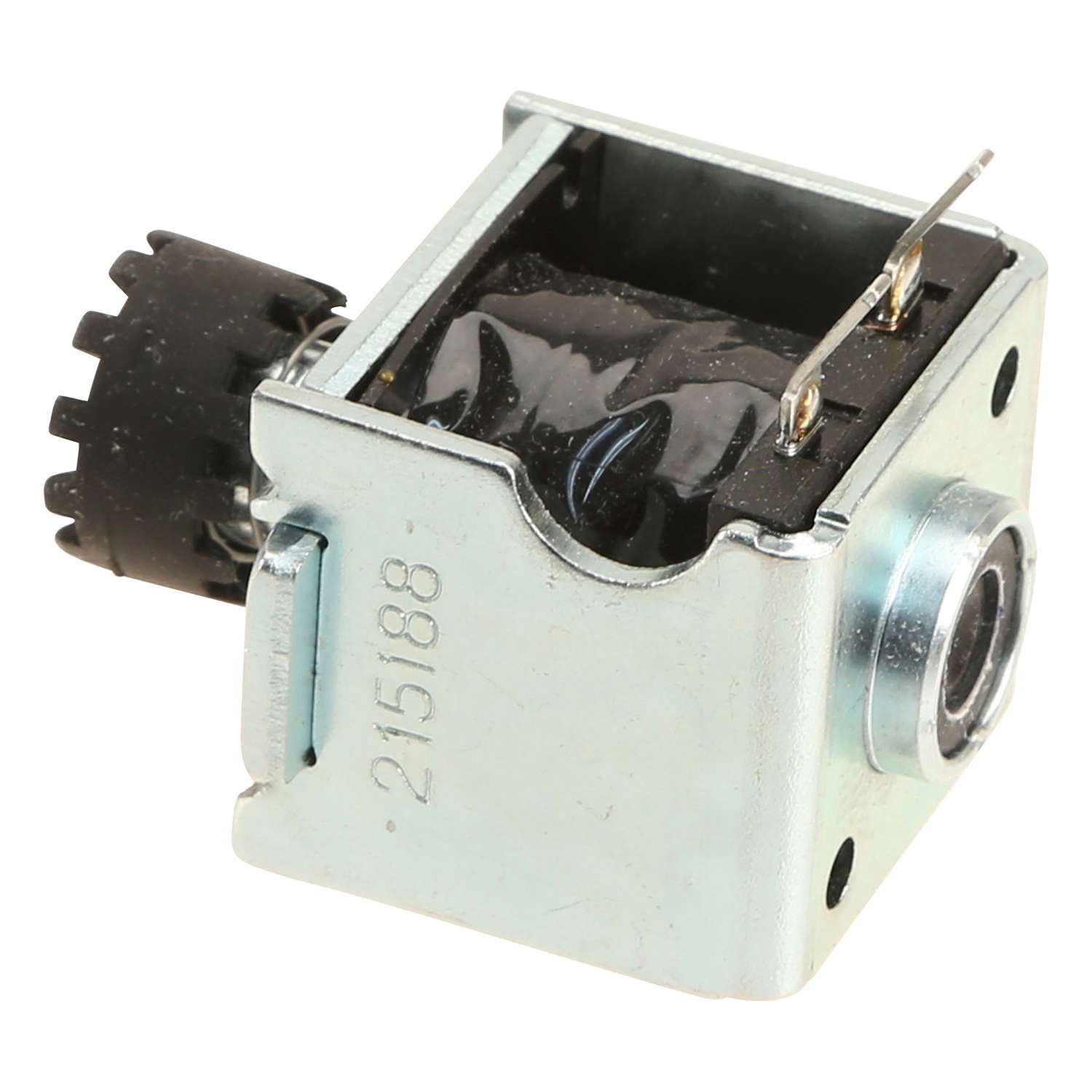

Depending on the design of the vehicle’s gears, it can control a single gear or multiple gears. It can turn the ground circuit on and off. The Engine Control Module controls the engine by opening or closing the hydraulic circuit using a signal. The transmission fluid then selects the gear needed by pressurizing it – this causes the gear to change as you’re driving. When the wire receives a signal from the Engine Control Unit or the Traction Control Unit, it causes the spring to fling open and this allows transmission fluid into the valve body.
Shift solenoid manual#
Get a quote and book an appointment online or speak to a service advisor at 1-80.Important: If you want to save $100s in servicing, diagnosis, and repair costs, improve your car's performance significantly and increase its value by 1.2x with little effort, download our Beginners Auto Maintenence & Repair Manual now.Įach solenoid has a spring beneath it, and this is wrapped around with an electrical wire. YourMechanic offers certified mobile mechanics who will come to your home or office to diagnose and repair your vehicle.
If the fluid was exceptionally dirty, the entire transmission may need to be disassembled and flushed. Replacing or refilling dirty or low transmission fluid.Addressing internal mechanical failures in the transmission.Clearing blocked internal transmission fluid passages.
Shift solenoid code#
In order to repair an issue that is causing the P0765 code to be stored in the PCM, a technician may perform the following fixes: This issue relates directly to the driver’s ability to shift gears, and could represent dangerous vehicle performance, or a total inability to operate the vehicle at all. The P0765 code represents a very serious error that should be addressed as soon as it is detected. If the most common repairs do not stop the code from being stored again, it can be a sign of an intermittent issue that requires an in-depth inspection and more complex repairs. It is common to overlook clearing the P0765 code and retesting after each potential solution is performed. Electrical errors are frequently to blame for this code, and a thorough diagnosis should be performed before any components are replaced.
The most commonly reported misdiagnosis with the P0765 code is immediately replacing the shift solenoid D, rather than considering that the shift solenoid circuit is at fault. Common mistakes when diagnosing the P0765 code If the code returns, the mechanic has diagnosed an issue within the shift solenoid system, and can move on to other repairs. These repairs should be followed by clearing the code from the PCM and performing a retest. After ensuring that the transmission fluid is clean and full, the mechanic should perform a visual examination of any wiring or electrical components, and ensure that none are loose, corroded, open, or shorted. If it is not, these issues should be remedied.
The fluid should be at the proper level, and should be clean. How does a mechanic diagnose the P0765 code?Īfter verifying the P0765 code with an OBD-II scanner, the mechanic should begin by inspecting the transmission fluid. In many cases, the illumination of the Check Engine Light will be accompanied by an inability to shift gears, a slipping transmission, an overheating transmission, decreased fuel efficiency, and the presence of other OBD-II codes related to the shift solenoids. In some cases, there may be no detectible symptoms with the P0765 code. Open or shorted shift solenoid D valve circuit.Blocked internal transmission fluid passages.One of the main causes for the P0765 code is a faulty shift solenoid D however, other causes may include: There are several things that could cause the shift solenoid D to appear to be malfunctioning. If the ECM attempts to open the shift solenoid D valve, and receives an improper voltage reading, it will alert the PCM to store the P0765 code. This solenoid is directed by the ECM, which monitors the solenoid’s voltage reading to ensure that it is working correctly. The shift solenoid D is part of the transmission system it helps to manage the transfer of fluids between circuits, and to change transmission gear ratios. Detecting the P0765 code means that the PCM is reporting an abnormality in the function of the shift solenoid D, which manages the transfer of hydraulic fluid between circuits in the transmission.
